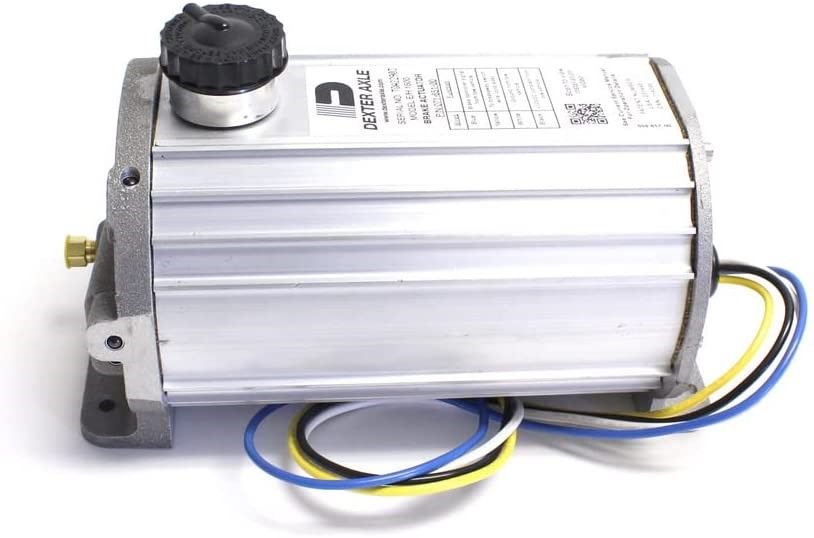

Dexter K7165100 - Electric/Hydraulic Brake Actuator 1600 PSI

Sold out
SKU K71-651-00
Availability: Out of stock

Notify me when back in stock

DEXTER Electro/Hydraulic Disc brake actuator is compatible with all vehicle electric connectors and works with most in-cab controllers. Electro/Hydraulic brake actuator provides 1600 psi of pressure for 1-3 axles equipped with disc brakes. Brake fluid pressure is proportional to the electronic brake controller signal. Sealed, anodized aluminum housing provides a weather tight seal.

  • 1,600 psi maximum pressure output for axles equipped with disc brakes (K71-651-00)
  • Dimensions: 11.38" long x 6" wide x 7" high
  • Requires a four wire hookup and minimum 10 amp/hour break-away kit
  • Uses DOT 3 or 4 brake fluid, holds 40 cubic inches (0.7 quarts) of fluid
  • Meets all DOT regulations and complies with CFR-393 federal braking requirements
  • Eliminates the feeling of being "pushed" by the trailer (reducing the potential of jackknife)
  • Eliminates the problems found when backing a trailer uphill with surge brakes
  • Eliminates brake drag common with surge brakes on a downhill grade


Installation kit

An installation kit is needed for proper installation on your vehicle


Manufacturer Part #:K71-651-00
Application:single-, tandem-, and triple-axle trailers with disc brakes
Distance between mounting holes (center to center):2-1/2" Between holes on same side of bracket/9-13/16" Between holes on opposite sides of bracket
Mounting Hole Diameter:1/4"
Power:12V DC
Dimensions:11" long x 6" wide x 7" tall
